AL1 Doors

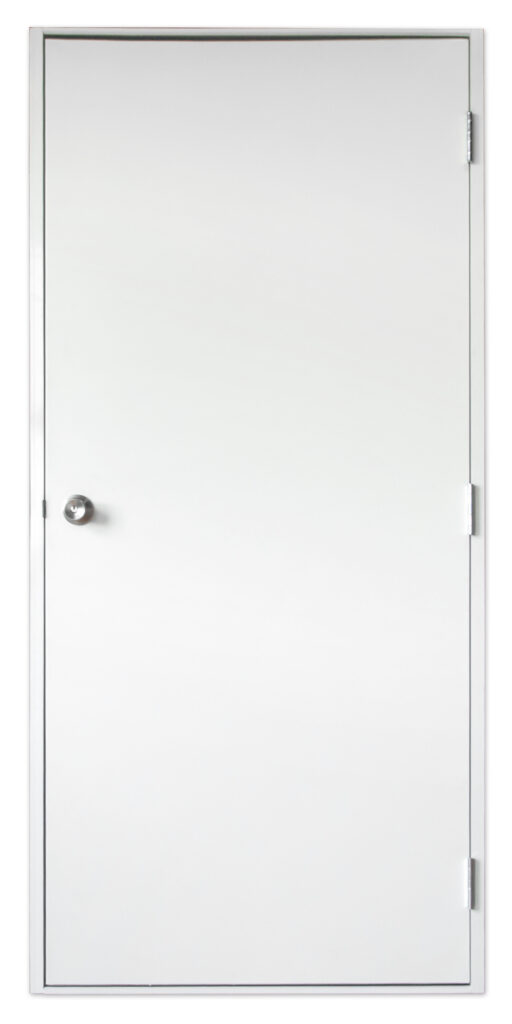

White door panel with White frame

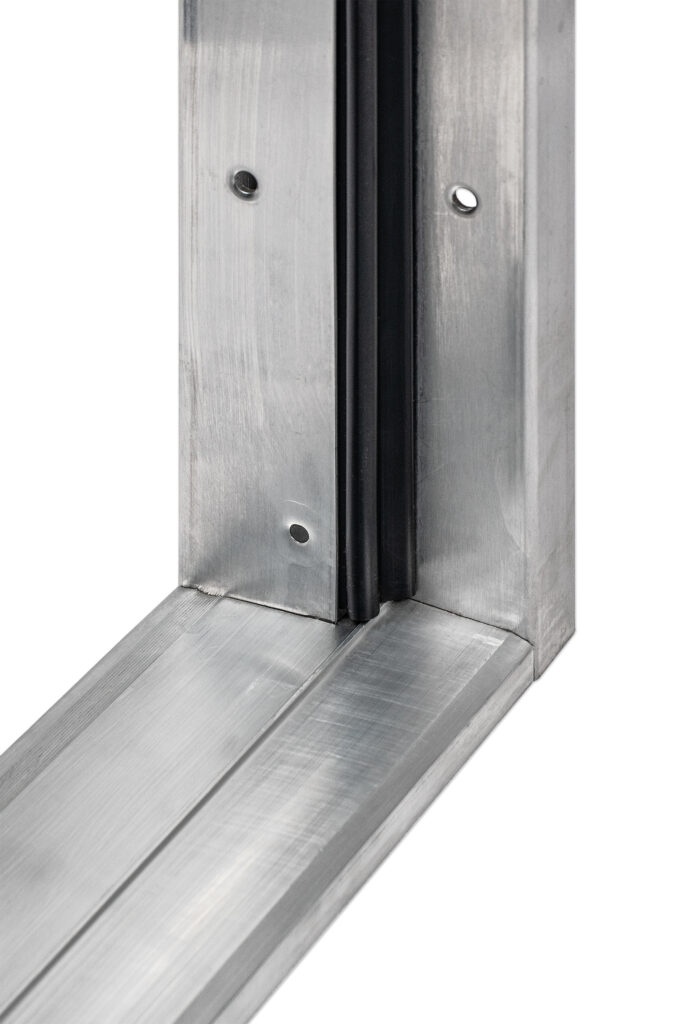

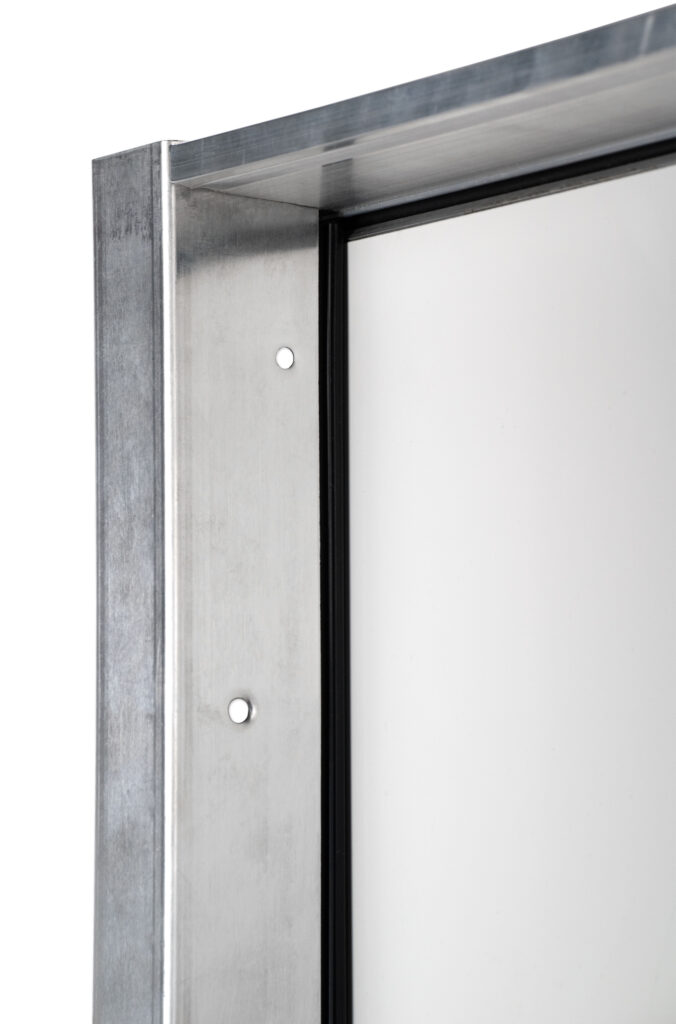

Mill finish threshold & jamb for the AL1 & AL2
White door panel with Mill finish frame

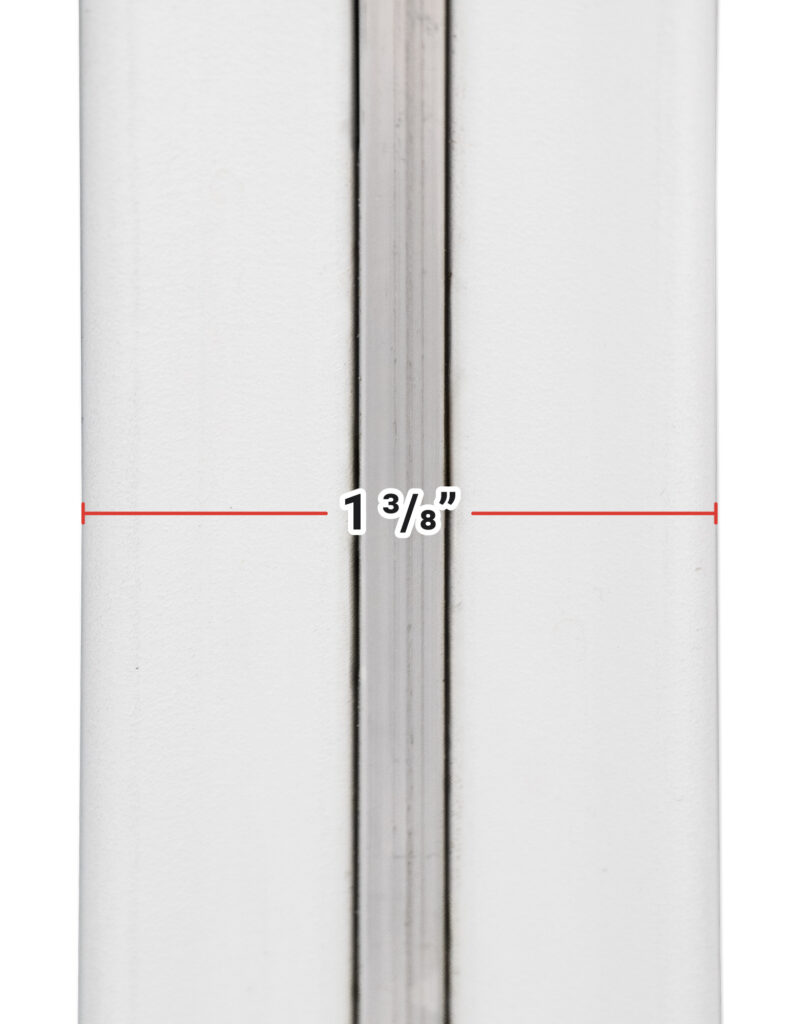

The AL1 has a thinner panel than the AL2

LINKS

AL1 & al2 Flyer PDf
al2 page
installation instructions pdf
entry door accessories page

AL1 Features

  • 1-3/8″ 26 ga. pre-finished steel panel with injected polyurethane foam core
  • 3-1/2″ Mill finish aluminum frame with dual contact weather strip
  • Wrap-around design provides seamless commercial finish
  • Nylon lockset insert eliminates lockset loosening – no wood block to deteriorate or absorb moisture
  • Pre-hung 4-way universal swing (unless supplied with a window)
  • Frame has common threshold top & bottom
  • Fixed-pin hinges
  • 2-3/4″ backset standard
  • 2-1/8″ bore

AL1 & AL2 Options

  • Windows in several sizes
  • White frame
  • Dead bolt prep
  • Closer blocking
  • 24 ga. skins
  • Other accessories & hardware available

Door Swing Chart
